Wheel Spacer Install

Discussion in 'FX (03-08) - Wheels & Suspension' started by fxlr8, Jun 2, 2007.

  1. fxlr8

    fxlr8 Staff Administrator

    17,932
    762
    California
    None
    Garages:
    1
    -----------------------------------------
    IF YOU USE AND LIKE THIS DIY PLEASE +1
    -----------------------------------------
    (THIS MAY BE ONE OF MANY WAYS OF DOING THIS DIY/WRITE-UP, PLEASE FOLLOW THE PROCEDURE YOU ARE MOST COMFORTABLE WITH.) ​

    -----------------------------------------------------------------------------------------------------------------------------------------------------------
    FRONT SPACER INSTALL

    H&R 20mm spacer kit with extended studs.

    1.JACK UP CAR AND PUT ON JACK STANDS. (DO NOT WORK ON A CAR WITHOUT QUALITY JACK STANDS!)

    2.REMOVE WHEELS

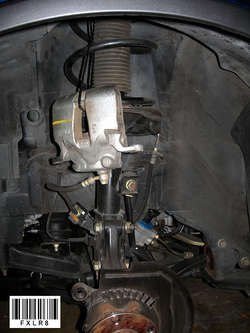

    3.REMOVE CALIPERS BY REMOVING 2 BOLTS FROM THE REAR OF THE CALIPER AND HANG ON SPRING WITH A ZIP TIE.

    4.REMOVE CALIPER HOLDER BY REMOVING 2 BOLTS FROM REAR OF CALIPER MOUNT.

    5.REMOVE ROTOR

    6.REMOVE OLD STUDS BY USING A SMALLER SOCKET ON THE STUD AND HITTING WITH A HAMMER.

    7.ONCE THE STUDS ARE LOOSE YOU CAN REMOVE THEM FROM THE REAR.

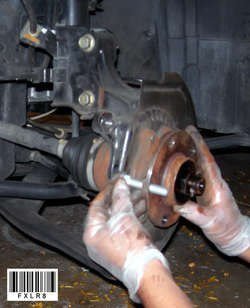

    8.WITH THE 20MM NEW STUDS YOU WILL HAVE TO TURN ROTOR TOWARDS THE FRONT OF THE CAR AND PUT IN THE NEW STUDS WHERE THERE IS A GROOVE IN THE DUST SHIELD.

    9.TAKE ONE OF YOUR OLD STOCK LUGNUTS AND REVERSE THEM SO THE FLAT SIDE OF THE LUG GOES ON FIRST.. SCREW THE LUG NUT ALL THE WAY DOWN AS FAR AS YOU CAN SO THE NEW STUDS GET FORCED IN.

    10.GET ALL THE NEW STUDS ON.

    11.PUT ROTOR BACK ON.

    12.PUT CALIPER MOUNT AND CALIPER BACK ON.

    13.INSTALL THE NEW SPACERS AND PUT YOUR WHEELS BACK ON.

    14.ONCE YOU HAVE YOUR WHEELS ON YOU ARE GOING TO TIGHTEN THE LUGS DOWN AND THIS SHOULD FORCE THE REST OF THE NEW STUD IN ALL THE WAY.

    15.MAKE SURE YOU TORQUE YOUR LUGS TO AROUND 85 FT/LBS.

    16.RETORQUE YOUR LUGS AFTER 60 MILES OF DRIVING.

    ENJOY


    Attached Files:

     *Registered members do not see this ad, register today!

  2. Krayzie

    Krayzie AĆ©rospatiale

    Jeff, what tools do i need to finish the job? like the size sockets and wrenches. I dont want to start and be half way through it with the wrong size wrench!

  3. trainerKEN

    trainerKEN iS VIP iS VIP

    do you have before and after pics?

  4. OP
    OP
    fxlr8

    fxlr8 Staff Administrator

    17,932
    762
    California
    None
    Garages:
    1
    I am sorry I don't remember, but I am certain all you will need are the normal everyday sizes, like 14mm 16mm.

    I don't have any pictures of before, but here is a super old picture of after
    http://i85.photobucket.com/albums/k46/FXLR8/front2.jpg

  5. Tkrtape3

    Tkrtape3 Member

    After all said and done when your wheel is back on, in the front,does the stud fill in the lug all the way, or is there a little bit of the stud hanging out pass the top of the lug or does the stud not reach the top of the lug?

    I ask this because I just had a rotation and noticed my studs don't
    fill in my lugs. My dad said that's dangerous.I have not checked my rears.

    Thanks

    Tkr

  6. Dr.2K

    Dr.2K iS Doctor on Duty iS VIP

    11,683
    9
    Santa Clarita, CA
    2005 FX45
    Garages:
    1
    That depends on if you used the bolts that came with the spacer or you can can change out to different lugs to fit or use an open ended lug.

  7. brown_fv

    brown_fv Premium Member Premium

    this seems like a pretty hard job...would you even recommend it to somebody with no experience doing this type of thing before?

    i will be putting new brake pads on within next month, i figured i can put some spacers on for my stock rims at the same time...or just get them both installed by somebody at the same time...

  8. Dr.2K

    Dr.2K iS Doctor on Duty iS VIP

    11,683
    9
    Santa Clarita, CA
    2005 FX45
    Garages:
    1
    It doesn't look like that difficult of a job if you have the time and inclination. And it looks like Jeff's write up is pretty dead on. But I left it for the pros to do with the right tools :LOL:.

  9. Since you'll be putting new pads on I say do the spacers yourself. It's pretty straight forward. I had never put new lugs on and it was easy, just time consuming.

  10. Tkrtape3

    Tkrtape3 Member

    DR2..I'm not sure if they used the same lugs.I just thought about it and I
    forgot that the Studs that came with the spacer came without lugs,should I have changed them out?

    I started having some slight rubbing noise and it's been driving me nuts,now that I drive the car downtown evryday.

    So I had drilled rotors put all around, because the rt front was a little warped but not horrible,upgraded pads and it's been 2 weeks and it feels better but still felt a little off.So I had everything rotated and rebalance and checked my alignment,this was just tonight,so they took the spacers
    off and there was rust build up in the rear, so they cleaned them and coming home it felt alot better but that's at low speeds I'll see in the morning when I'm doing 90 to work.

    Thanks for the insight

    TKR

  11. Dr.2K

    Dr.2K iS Doctor on Duty iS VIP

    11,683
    9
    Santa Clarita, CA
    2005 FX45
    Garages:
    1
    Keep us updated how it goes. I never had any issues when I had my spacers but when I did remove them one of the rears were rusted badly and was hell to remove.

  12. Is the rear install the same as the front install? Thanks

  13. OP
    OP
    fxlr8

    fxlr8 Staff Administrator

    17,932
    762
    California
    None
    Garages:
    1
    Honestly can't remember, pretty much the same general idea though.


  14. Yeah, I just wanted to make sure I unhooked the rear break assembly correctly. Im assuming the rest in the same.

  15. Nice write up, great pic's, it's like ordering breakfast at Denny's! BB

  16. Guys,

    Pleae help a Noob! I recall someone saying to get the DRM style for the H&R spacer. Should I be buying the DRM or DRS style? It looks to me like the pictures posted on this thread are using the DRS style...

    Please help!

  17. Is it necessary to remove the brake caliper assembly? From the looks of it, it seems like you can just keep everythign on and just knock on the stud into the groove and remove it.

    Sake_yo

  18. I had to replace a broken stud few weeks ago and had to remove the brake caliper. I thought the same by being able to squeeze through the little space but no way......you'll need to take off the brakes and even with the brakes off, you still need to chisel the stud through the small space to get through the rotors.

  19. OP
    OP
    fxlr8

    fxlr8 Staff Administrator

    17,932
    762
    California
    None
    Garages:
    1
    They are the DRS style, which is better IMO because you eliminate an extra set of studs and lugs.

  20. raymond

    raymond Member

    1,283
    2
    Netherlands
    FX35 RWD
    Garages:
    1
    Any part number on the H&R Studs. Need to order new and good onces as my current gave me a lot of trouble.
    Can't seem to find it here on the scene.

    Jeff...??
