QX70 09+ OEM Instructions for Aero Rear Under Protector

Discussion in 'QX70 Write-Ups' started by GEE50FX, Apr 3, 2015.

  1. GEE50FX

    GEE50FX The Traveller iS VIP

    Messages:
    18,296
    Likes Received:
    829
    Location:
    Kincardine, Ontario, Ca
    Car:
    2010 White FX50S-sold
    Name:
    Wayne
    Garages:
    1

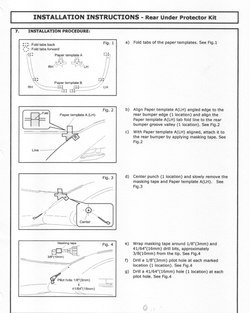

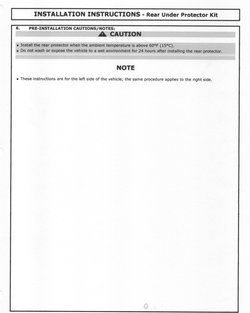

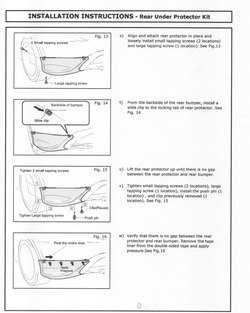

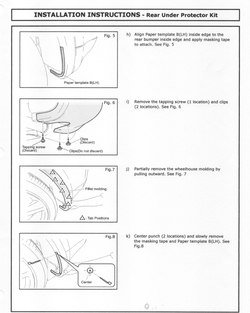

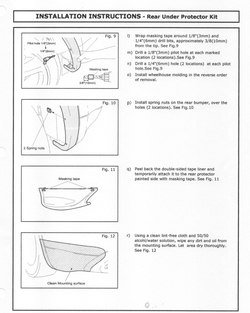

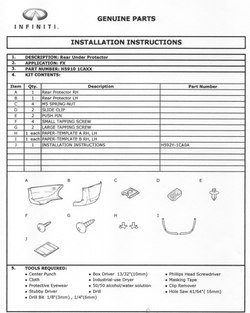

    I have not installed this part yet but below are the OEM instructions for this part.










    Here it is installed


    Attached Files:

    Last edited: Jun 11, 2015
    rex9271 and SIDE FX like this.

     *Registered members do not see this ad, register today!

  2. SIDE FX

    SIDE FX Premium Member Premium

    Messages:
    154
    Likes Received:
    19
    Location:
    Philly AKA Philadelphia
    Car:
    2009 Infiniti Fx35 AWD Twilight
    Name:
    Brian
    Garages:
    2
    Looks real good nice job.

    GEE50FX likes this.
  3. FQ50s

    FQ50s Member

    Messages:
    23
    Likes Received:
    21
    Location:
    Silicon Valley
    Car:
    Fx50s
    Name:
    Shaun
    Ok..i did this myself over the weekend. Key is to have all the right tools, particularly the drill bits!

    Start off by using template for the rear hole (yes, you have to make a 16mm hole in the rear bumper). Use a hole punch to align properly and then drill accordingly.


    Attached Files:

    Last edited: Nov 13, 2017
  4. FQ50s

    FQ50s Member

    Messages:
    23
    Likes Received:
    21
    Location:
    Silicon Valley
    Car:
    Fx50s
    Name:
    Shaun
    Next you’ll want to jack up your car and take off the wheels as you need access to the wheelwells. Then, use the supplied template to make 2 1/4” holes. Note: you dont need to pull the wheel well moldings, just becareful where you drill. Afterwards, place in the nut clups and pull out 1 bolt underneath by the wheel well and 1 push clip under the back bumper. Now pull back some of the 3m adhesive on each side and place the rear body panel on bu aligning the hole in the bumper first and then pushing it into wheel well. Now screw in the tapping screws to the nut clips at wheel well and the larger screw supplied underneath. The trickiest part is getting the white plastic block onto the body kit. You do this by accessing the inside of the bumper theough the bottom rear and aliding it in until it clicks. Takes about an hour tops to do it, if yiu have the right tools and as always measure and align evrything properly first!


    Attached Files:

    GEE50FX likes this.
  5. OP
    OP
    GEE50FX

    GEE50FX The Traveller iS VIP

    Messages:
    18,296
    Likes Received:
    829
    Location:
    Kincardine, Ontario, Ca
    Car:
    2010 White FX50S-sold
    Name:
    Wayne
    Garages:
    1
    Good report, well done.
