KIDO big brake kit for any car FEELER

**Chedman13** · 02-17-2012 12:56 PM

KIDO big brake kit for any car feeler. Add yourself if you're interested. The main product I've worked out is such:

But list is here for applications:
brake_kit_application_2011v3.pdf
(didn't fix the page breaks... sorry got lazy)

Three people or more (I can get any size, but this setup is a common setup for a FX):
6 Pot with 356mm (14") two piece rotor
4 Pot with 330mm (13") two piece rotor

Extras:
Stainless steel lines.

Free (included):
Caliper and rotor bell(hat) anodized to any of the 12 colors listed here (note #12 is silver, not white):

You can make any color combination (rotor different than caliper, etc... whatever you want). These are 100% custom made to your car and to your specs.
Engraved with KIDO or anything else you like that is not patented (e.g. no "Infiniti")
Whatever rotor style you want, drilled/slotted/both/blank/curved/etc...

Some details:
Caliper made in aluminium 7075
Rotor Ring made in IRON FC30
Rotor bell(hat) made in aluminium 6061 T6
Brake line made in PTFE(the best Teflon)
stainless steel with PVC cover

If you have any questions, easier for you to ask and me just answer. PM me for pricing.

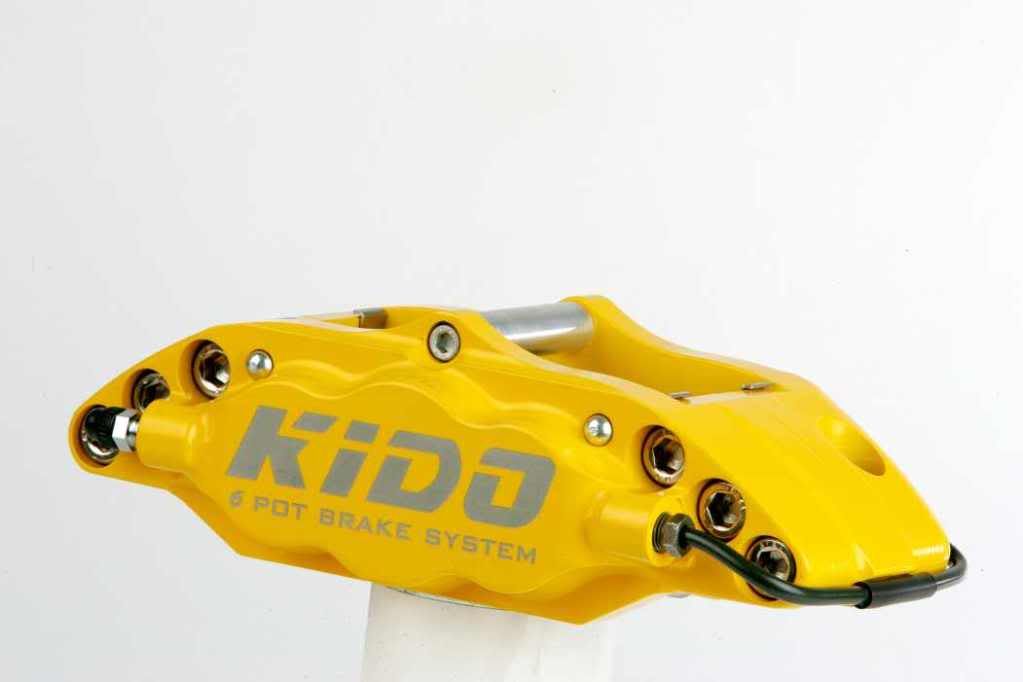

Here are some photos:

**sir21** · 02-17-2012 01:06 PM

Ed you gonna bankrupt some people here....

**Chedman13** · 02-17-2012 01:09 PM

Originally Posted by sir21

Ed you gonna bankrupt some people here....

Pretty good deals right? =)

Can't beat straight from the factory. Lance can attest to this... they custom CNC'd something on the fly in the factory for him last night.

**edmarin** · 02-17-2012 01:19 PM

2 quick questions:
Can we choose between slotted, drill, or slotted drilled?
What would be the recommended brake fluid for these guys?

**Chedman13** · 02-17-2012 01:25 PM

Yes, anything you really want. Their CNC machine can do it all.

And even floating rotors if you really want them, but I think two piece is sufficient.

Originally Posted by edmarin

2 quick questions:
Can we choose between slotted, drill, or slotted drilled?
What would be the recommended brake fluid for these guys?

---------- Post added at 03:25 PM ---------- Previous post was at 03:25 PM ----------

Any DOT 3 fluid or better. So anything like OEM or better.

Originally Posted by edmarin

2 quick questions:
Can we choose between slotted, drill, or slotted drilled?
What would be the recommended brake fluid for these guys?

**edmarin** · 02-17-2012 01:32 PM

Thanks. 2 more questions

Do you know what pads they use when they send the kit
Also when we need to get new pads or rotors can they give us a discounted price when reordering ?

**Chedman13** · 02-17-2012 01:50 PM

Street pads unless you want race pads.
street:
Operating temp 0-500
Instantaneous temp 600
friction coefficient 0.35-0.4u

race:
Operating temp 100-700
Instantaneous temp 750
friction coefficient 0.38-0.52u

You can use Ferodo and AP Racing pads... if you don't want to use Kido's.

Yes, already worked out a discounted price:
$90 for front pad set
$80 for rear pad set

Rotors are around:$350/set (front)
$310/set (rear)
Plus shipping.

Pretty good deal, typically double the cost.

Originally Posted by edmarin

Thanks. 2 more questions

Do you know what pads they use when they send the kit Also when we need to get new pads or rotors can they give us a discounted price when reordering ?

**edmarin** · 02-17-2012 01:52 PM

Thank you sir

**Chedman13** · 02-17-2012 01:52 PM

Originally Posted by edmarin

Thank you sir

1)edmarin 2011 FX35 AWD

I know Kido products pretty well=)

**ocal21** · 02-17-2012 02:04 PM

Damn that looks like a real good deal specially since you get to pick the color u want for the calipers.

**PMG 705** · 02-17-2012 02:08 PM

Crazy Ed, crazy...

**Logan** · 02-17-2012 02:33 PM

Prices are tight!

**FX4BR** · 02-17-2012 03:18 PM

Oh Jesus... it's like you hijacked my thoughts. Been looking for a good kit, kinda passively though so that I don't have to shell out the $$$. Have a headache at the moment. Will look more into this kit later tonight. Thanks for all of your hard work.

**AeroBFA** · 02-17-2012 04:20 PM

I am definitely feeling it Ed. We'll probably talk more in detail via email, but I didn't know you could even choose the color and style of the hub/rotor. These are great options for fickle people like me, I love it. I'm thinking 15" all around, hope the pricing doesn't skyrocket from there.
